Widget Development Playground

This page demonstrates the full capabilities of the Cinema8 Widget API using a live video example. It includes all supported widget property types, HTML usage with Handlebars, dynamic interactions with JavaScript, and runtime variable access.

This playground showcases a working widget built using Cinema8’s native development environment. You can inspect widget behavior, supported methods, events, and more.

🎬 Live Playground Video

🛠️ Widget Properties Demo

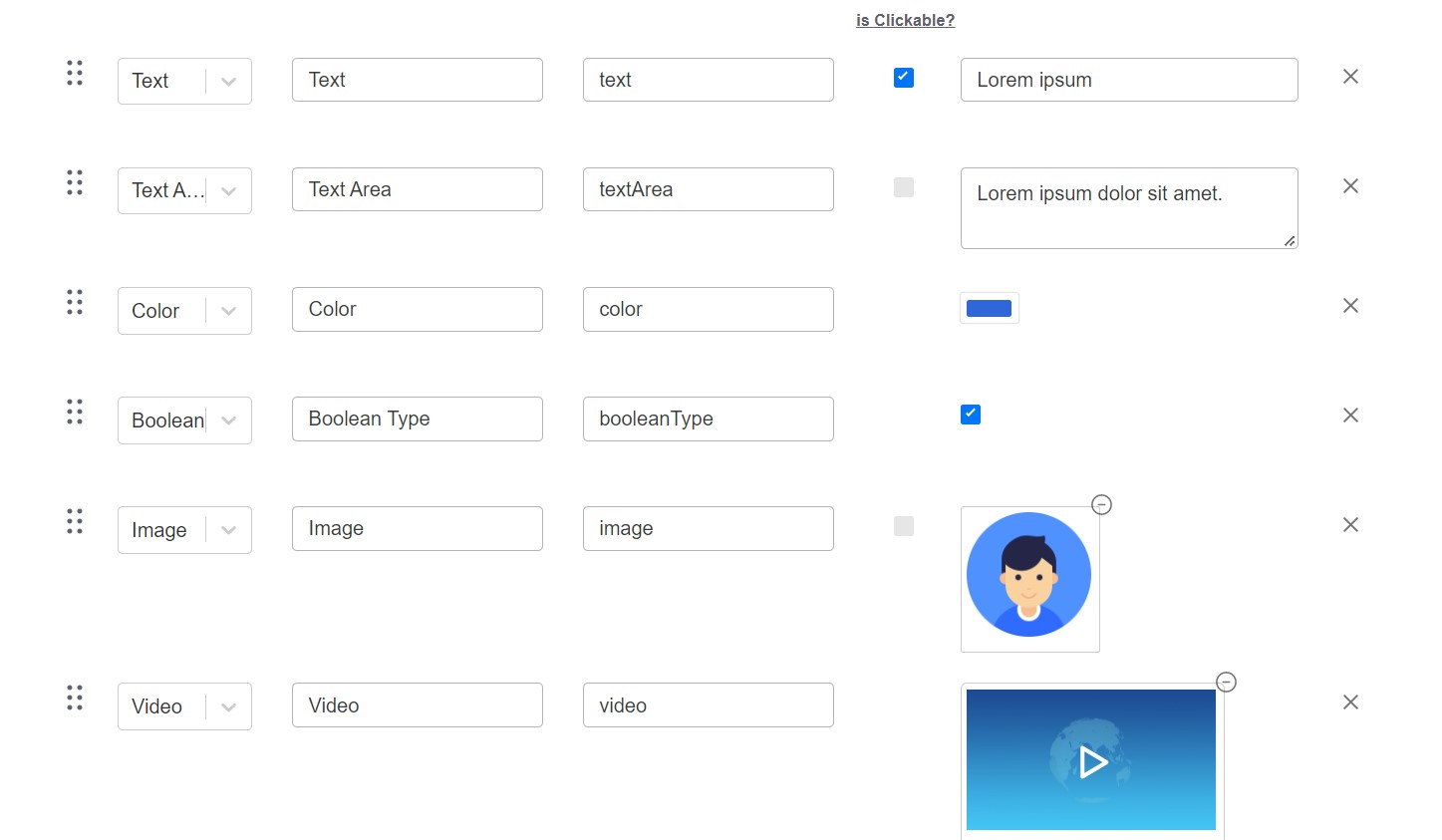

Widget Property Overview
Visual representation of the defined properties used in this playground

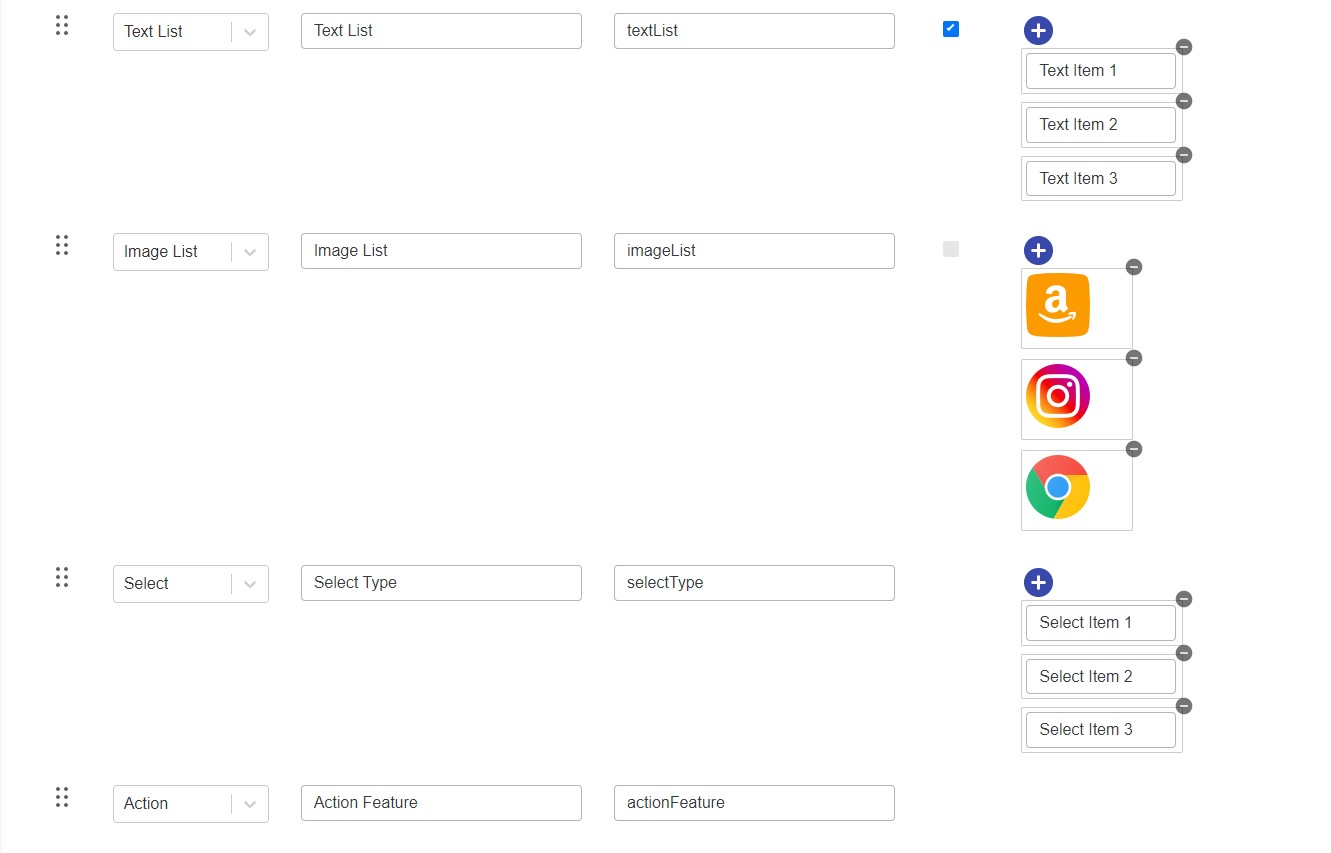

Widget Property Overview
Visual representation of the defined properties used in this playground

🧩 HTML Code

<div class='c-{{uid}}'>
  <div class='col'>

    <div>
      <span>uid (Unique Identifier)</span>
      <span>{{uid}}</span>
    </div>

    <div>
      <span>Text</span>
      <span>{{text}}</span>
    </div>

    <div>
      <span>Text Area</span>
      <span>{{textArea}}</span>
    </div>

    <div>
      <span>Color</span>
      <span class='color'>{{color}}</span>
    </div>

    <div>
      <span>Boolean Type</span>
      <span>{{booleanType}}</span>
    </div>

    <div>
      <span>Image</span>
      <img src='{{image}}' width='100' height='100' />
    </div>

    <div>
      <span>Video</span>
      <video class='video' controls nodownload>
        <source src='{{video}}' />
      </video>
    </div>

    <div>
      <span>Text List</span>
      <ul>
        {{#each textList}}
          <li>{{this}}</li>
        {{/each}}
      </ul>
    </div>

    <div>
      <span>Image List</span>
      <div class='image-list'>
        {{#each imageList}}
          <img src='{{this}}'/>
        {{/each}}
      </div>
    </div>

    <div>
      <span>Select Type</span>
      {{#each selectType}}
          <span>{{this}}</span>
      {{/each}}

      <br/>
      Selected: {{selectedSelectType}}
    </div>

    <div>
      <span>Action Feature</span>
      <button class='action-feature-btn'>Click to play video</button>
    </div>



    <div>
      <span>Clickable Single Item</span>
      <button data-onclick-ref="text"> jump to 00:10 and pause video</button>
    </div>



    <div>
      <span>Clickable List Item (1:play, 2:pause, 3:jump to 00:15)</span>
      <ul>
        {{#each textList}}
          <li data-onclick-ref="textList">{{this}}</li>
        {{/each}}
      </ul>
    </div>
  </div>




  <div class='col'>

    <div>
      <span>Variable (html)</span>
      <span>Score: ${score}</span>
      <span>License: ${license!none}</span>
    </div>

    <div>
      <button class="score-variable-30">Set Variable (score:30)</button>
      <button class="score-variable-add-10">Add +10</button>
      <button class="license-variable-enterprise">set Variable (license:'Enterprise')</button>
    </div>

    <div>
      <span>Variables</span>
      <button class='variables'>Click and check Console</button>
    </div>

    <div>
      <span>Widget Props</span>
      <button class='widget-props'>Click and check Console</button>
    </div>

    <div>
      <span>Widget Prop by key(textArea)</span>
      <button class='widget-prop-single'>Click and check Console</button>
    </div>

    <div>
      <span>Track Props</span>
      <button class='track-props'>Click and check Console</button>
    </div>

    <div>
      <span>Track Prop by key(duration)</span>
      <button class='track-prop-duration'>Click and check Console</button>
    </div>

    <div>
      <span>Runtime</span>
      <button class='runtime'>Click and check Console</button>
    </div>

    <div>
      <span>Play</span>
      <button class='play'>Play</button>
    </div>

    <div>
      <span>Pause</span>
      <button class='pause'>Pause</button>
    </div>

    <div>
      <span>Video paused</span>
      <button class='paused'>Click and check Console</button>
    </div>

    <div>
      <span>Current time</span>
      <button class='current-time'>Click and check Console</button>
    </div>

    <div>
      <span>Set Current time</span>
      <button class='set-current-time'>Set current time (00:12)</button>
    </div>

    <div>
      <span>Hide player controls</span>
      <button class='hide-player-controls'>Hide player controls</button>
    </div>

    <div>
      <span>Show player controls</span>
      <button class='show-player-controls'>Show player controls</button>
    </div>


    <div>
      <span>Volume</span>
      <button class='volume'>Click and check Console</button>
    </div>

    <div>
      <span>Set volume</span>
      <button class='set-volume'>Set volume (0.5)</button>
      <button class='mute-volume'>Mute volume (0)</button>
    </div>

    <div>
      <span>Subtitles</span>
      <button class='subtitles'>Click and check Console</button>
    </div>

     <div>
      <span>Current subtitle</span>
      <button class='subtitle'>Click and check Console</button>
    </div>

    <div>
      <span>Set subtitles</span>
      <button class='set-sub-en'>Set English (en)</button>
      <button class='set-sub-de'>Set German (de)</button>
      <button class='set-sub-none'>Turn off subtitles</button>
    </div>

    <div>
      <span>Launch fullscreen</span>
      <button class='launch-fs'>Launch fullscreen</button>
    </div>

    <div>
      <span>Exit fullscreen</span>
      <button class='exit-fs'>Exit fullscreen</button>
    </div>

    <div>
      <span>Playback rate</span>
      <button class='playback-rate'>Click and check Console</button>
    </div>

     <div>
      <span>Set playback rate</span>
      <button class='set-playback-rate-0-5'>Set playback rate (0.5)</button>
      <button class='set-playback-rate-1'>Set playback rate (1)</button>
    </div>

     <div>
      <span>Set invisible</span>
      <button class='set-invisible'>Set invisible</button>
    </div>

    <div>
      <span>Quality levels</span>
      <button class='quality-levels'>Click and check Console</button>
    </div>

    <div>
      <span>Current quality levels</span>
      <button class='quality-level'>Click and check Console</button>
    </div>

    <div>
      <span>Set quality level</span>
      <button class='set-quality-level-360p'>Set quality level (360p)</button>
    </div>

    <br /><br />

  </div>

</div>

🎨 CSS Code

.c-{{uid}}{
  width: 100%;
  height: 100%;
  background: #FFF;
  padding: 1rem;
  overflow-y: scroll;
  display: flex;
  justify-content: space-between;
}
.c-{{uid}} .col{
  width: 50%;
}
.c-{{uid}} .col > div{
  display: flex;
  flex-direction: column;
  margin-bottom: .75rem;
}
.c-{{uid}} .col > div span:first-child{
  font-weight: bold;
}
.c-{{uid}} .color{
  color: {{color}};
}
.c-{{uid}} .video{
  width: 300px;
}
.c-{{uid}} .image-list img{
  width: 64px;
  height: 64px;
  margin-right: 10px;
}
.c-{{uid}} button{
    width: 200px;
}

📜 JavaScript Code

// Set Variable
// Unique named variable declaration
var foo_{{uid}} = 'bar'
console.log('Foo: ', foo_{{uid}});

// unique named function declaration
function testFn_{{uid}}(){

}

// Set Variable
$('.c-{{uid}} .score-variable-30').click(function() {
    c8PlayerApi.setVariable('score', 30);
});

// Set variable / Get variable
$('.c-{{uid}} .score-variable-add-10').click(function() {
  var prevState = c8PlayerApi.getVariable('score');
  c8PlayerApi.setVariable('score', prevState + 10);
});

// Set Variable
$('.c-{{uid}} .license-variable-enterprise').click(function() {
    c8PlayerApi.setVariable('license', 'Enterprise');
});

// Variables
$('.c-{{uid}} .variables').click(function() {
  console.log(c8PlayerApi.getVariables())
});

// Widget Props
$('.c-{{uid}} .widget-props').click(function() {
   console.log(c8PlayerApi.getWidgetProps());
});

// Widget Prop
$('.c-{{uid}} .widget-prop-single').click(function() {
   console.log(c8PlayerApi.getWidgetProp('textArea'));
});

// Track Props
$('.c-{{uid}} .track-props').click(function() {
   console.log(c8PlayerApi.getTrackProps());
});

// Track prop
$('.c-{{uid}} .track-prop-duration').click(function() {
  // second parameter is default value
   console.log(c8PlayerApi.getTrackProp('duration', 10));
});

// Widget prop action
$('.c-{{uid}} .action-feature-btn').click(function() {
    c8PlayerApi.executeWidgetPropActions("actionFeature");
});

// Runtime
$('.c-{{uid}} .runtime').click(function() {
    console.log(c8PlayerApi.getRuntime());
});

// Play video
$('.c-{{uid}} .play').click(function() {
   c8PlayerApi.play();
});

// Pause video
$('.c-{{uid}} .pause').click(function() {
   c8PlayerApi.pause();
});

// Checks whether video is paused.
$('.c-{{uid}} .paused').click(function() {
   console.log('Paused: ', c8PlayerApi.paused());
});

// Current time
$('.c-{{uid}} .current-time').click(function() {
   console.log('Current Time: ', c8PlayerApi.currentTime().toFixed(2));
});

// Set current time
$('.c-{{uid}} .set-current-time').click(function() {
   c8PlayerApi.currentTime(12);
});

// Hide player controls
$('.c-{{uid}} .hide-player-controls').click(function() {
   c8PlayerApi.hideControls();
});

// Show player controls
$('.c-{{uid}} .show-player-controls').click(function() {
   c8PlayerApi.showControls();
});

// Volume
$('.c-{{uid}} .volume').click(function() {
   console.log('Volume: ', c8PlayerApi.volume());
});

// Set volume
$('.c-{{uid}} .set-volume').click(function() {
   c8PlayerApi.volume(0.5);
});

// Mute volume
$('.c-{{uid}} .mute-volume').click(function() {
   c8PlayerApi.volume(0);
});

// Returns available subtitles
$('.c-{{uid}} .subtitles').click(function() {
   console.log(c8PlayerApi.subtitles());
});

// Current subtitle
$('.c-{{uid}} .subtitle').click(function() {
   console.log(c8PlayerApi.subtitle());
});

// Set subtitle
$('.c-{{uid}} .set-sub-en').click(function() {
   c8PlayerApi.subtitle('en');
});

// Set subtitle
$('.c-{{uid}} .set-sub-de').click(function() {
   c8PlayerApi.subtitle('de');
});

// Set subtitle
$('.c-{{uid}} .set-sub-none').click(function() {
   c8PlayerApi.subtitle('off');
});

// Launch fullscreen
$('.c-{{uid}} .launch-fs').click(function() {
   c8PlayerApi.launchFullscreen();
});

// Exit fullscreen
$('.c-{{uid}} .exit-fs').click(function() {
   c8PlayerApi.exitFullscreen();
});

// Playback rate
$('.c-{{uid}} .playback-rate').click(function() {
   console.log(c8PlayerApi.playbackRate());
});

// Set playback rate
$('.c-{{uid}} .set-playback-rate-0-5').click(function() {
   c8PlayerApi.playbackRate(0.5);
});

// Set playback rate
$('.c-{{uid}} .set-playback-rate-1').click(function() {
   c8PlayerApi.playbackRate(1);
});

// Set playback rate
$('.c-{{uid}} .set-invisible').click(function() {
   c8PlayerApi.setInvisible();
   //c8PlayerApi.setVisible();
});

// Returns available quality levels if exist
$('.c-{{uid}} .quality-levels').click(function() {
   console.log(c8PlayerApi.qualityLevels());
});

// Current quality level of the video
$('.c-{{uid}} .quality-level').click(function() {
   console.log(c8PlayerApi.qualityLevel());
});

// Sets quality level of the video of given quality level ( Set "auto" for Auto level )
$('.c-{{uid}} .set-quality-level-360p').click(function() {
   c8PlayerApi.qualityLevel(2);
   c8PlayerApi.play();
});

/**
 *  EVENTS
 */
 c8PlayerApi.on("play", function(){
    console.log("Play Event");
  })

  c8PlayerApi.on("pause", function(){
    console.log("Pause Event");
  })

  c8PlayerApi.on("visibilityChange", function(visible){
    console.log("VisibilityChange Event:", visible)
  })

  c8PlayerApi.on("playbackRateChange", function(playbackRate){
    console.log("PlaybackRateChange Event:", playbackRate)
  })

  c8PlayerApi.on("qualityLevelChange", function(quality){
    console.log("QualityLevelChange Event:", quality)
  })

  c8PlayerApi.on("fullscreenChange", function(fullscreen){
    console.log("FullscreenChange Event:", fullscreen)
  })

  c8PlayerApi.on("widgetDestroy", function(){
    console.log("WidgetDestroy Event")
  })

  c8PlayerApi.on("variableChange", function(variableName, prevValue, newValue){
    console.log("VariableChange Event:", variableName, prevValue, newValue)
  })

/*

  // Returns object of current audio track if exist, otherwise it returns null;
  c8PlayerApi.audioTrack();
  {
    "label": "Spanish",
    "value": "es"
  }

  // Sets audio track of the video by given index
  c8PlayerApi.audioTrack(1);

  // Returns available audio tracks if exist, otherwise it returns an empty array
  c8PlayerApi.audioTracks();
    [
      {
        "label": "English",
        "value": "en"
      },
      {
        "label": "Spanish",
        "value": "es"
      }
    ]

    // Returns authenticated user info
    c8PlayerApi.getAuthenticatedUser();
    {
      name: 'John',
      surname: 'Doe',
      username: 'john.doe'
    }

    // Store key-value pair data
    c8PlayerApi.postData(payload).then(function(res){

    });

    // Returns stored data
    c8PlayerApi.getData().then(function(res){
      console.log(res)
    });
*/

🧪 Try More

Explore the full API capabilities including:

  • Variable handling via c8PlayerApi.getVariable()
  • Event hooks like on('play'), on('pause'), on('visibilityChange')
  • Playback control (play, pause, seek, fullscreen)
  • Subtitle & audio track settings
  • Volume and quality control
  • Storing & retrieving data with postData() and getData()

You can build your own widgets by following the Widget API Guide or clone the sample from this playground.

Support for CMI5 and XapiAccounts and billing
